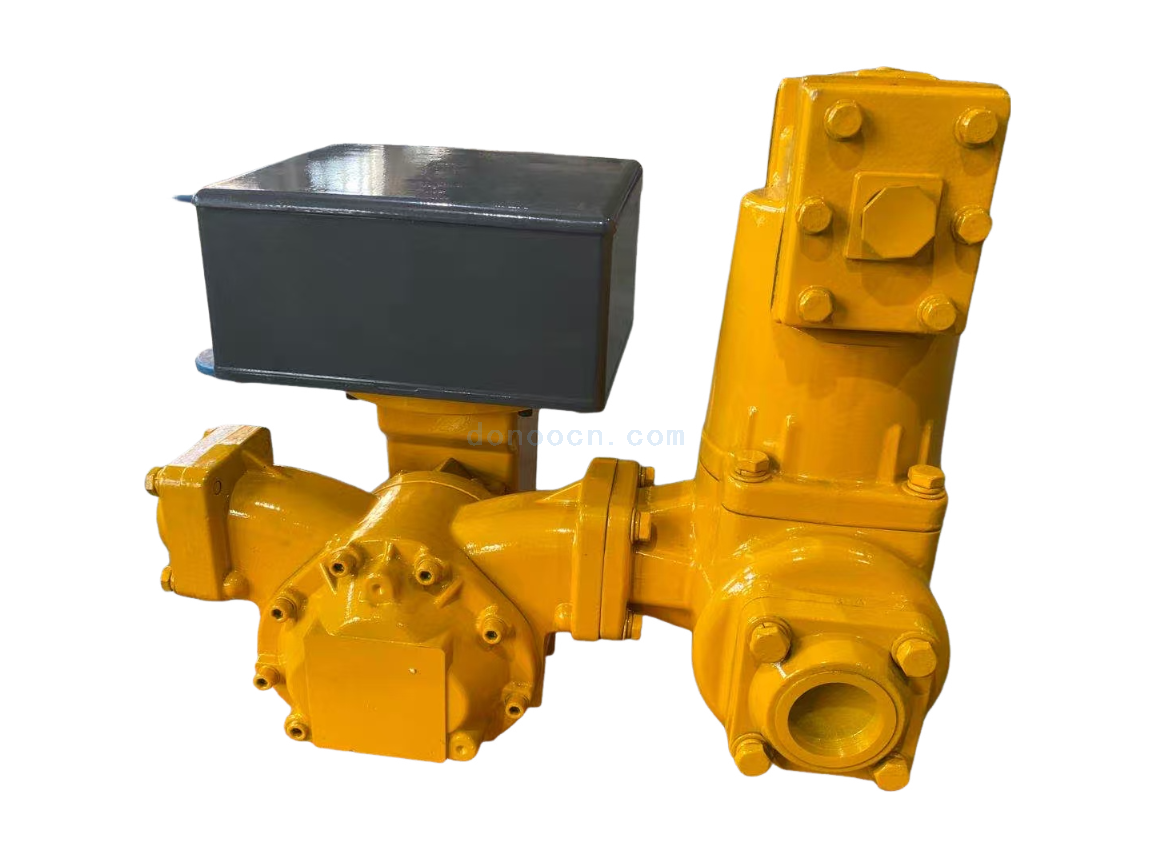

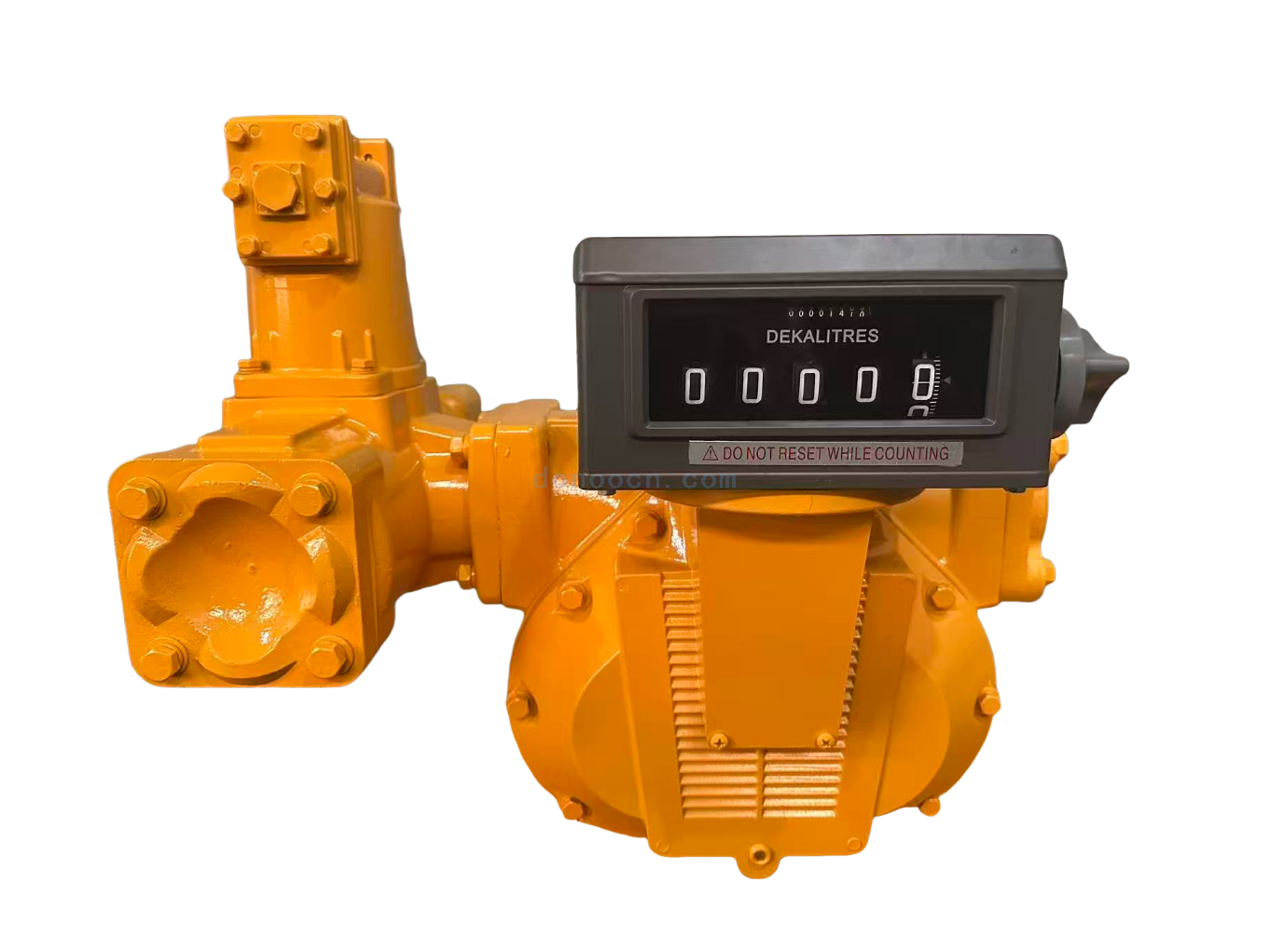

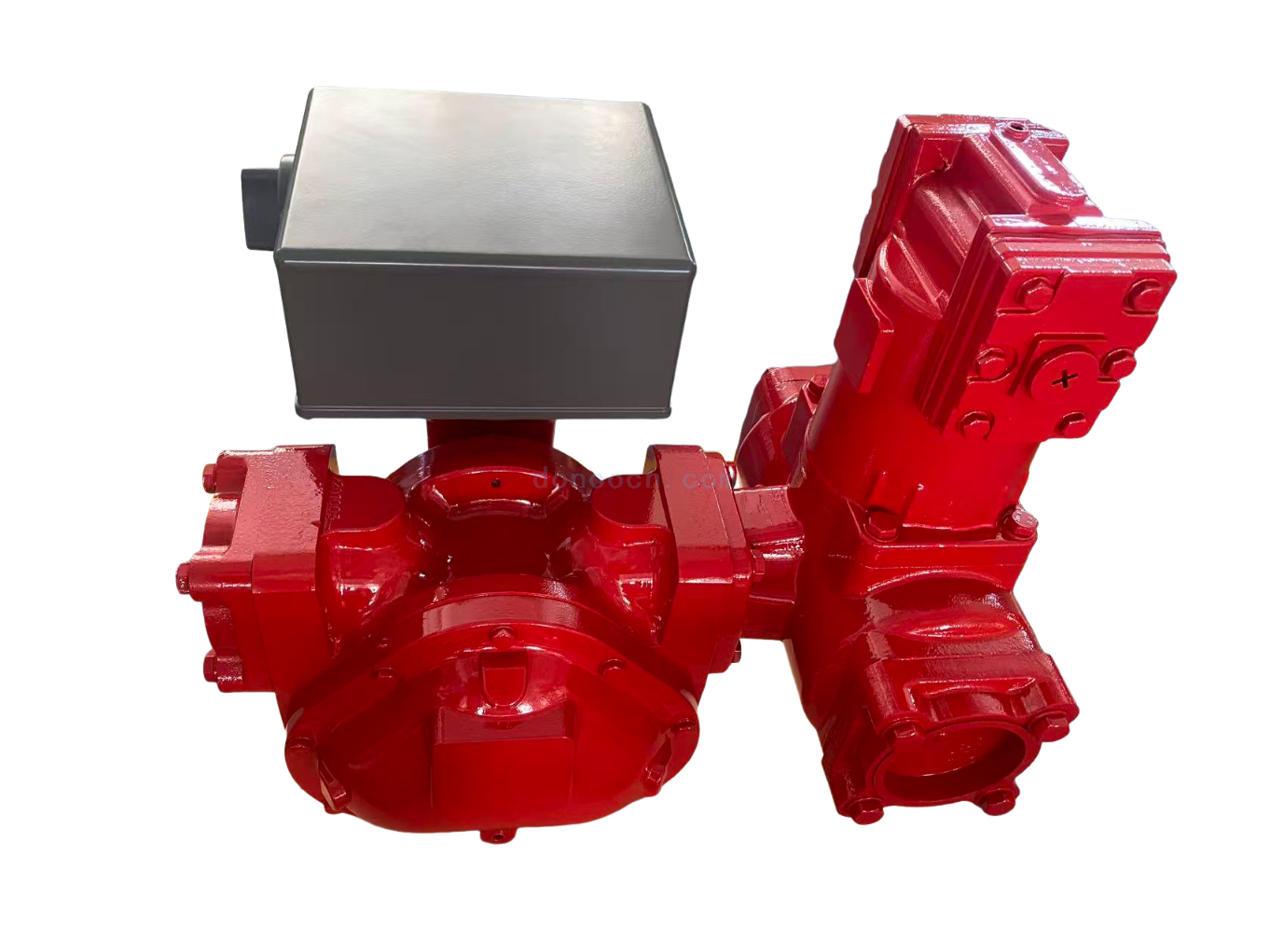

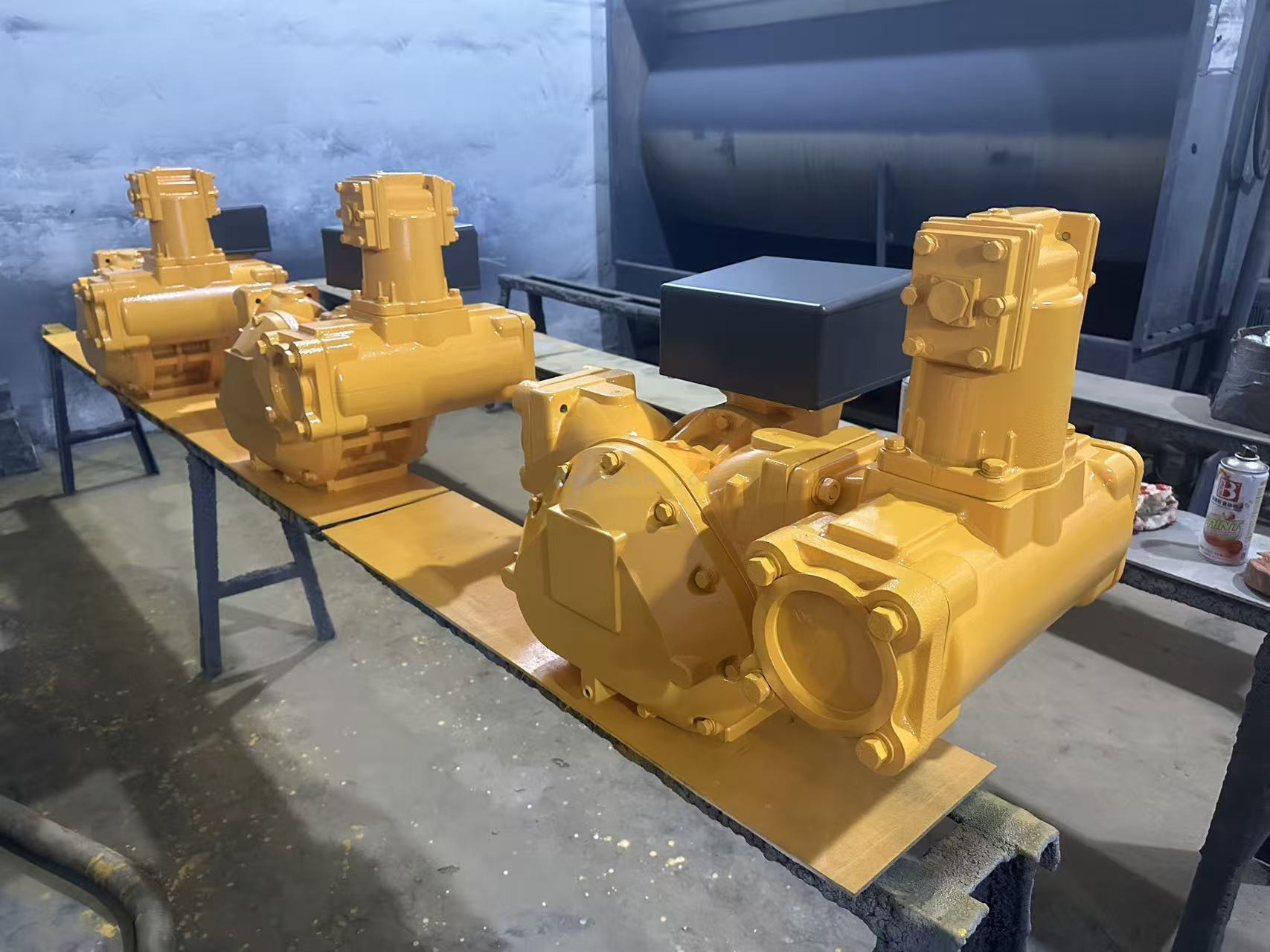

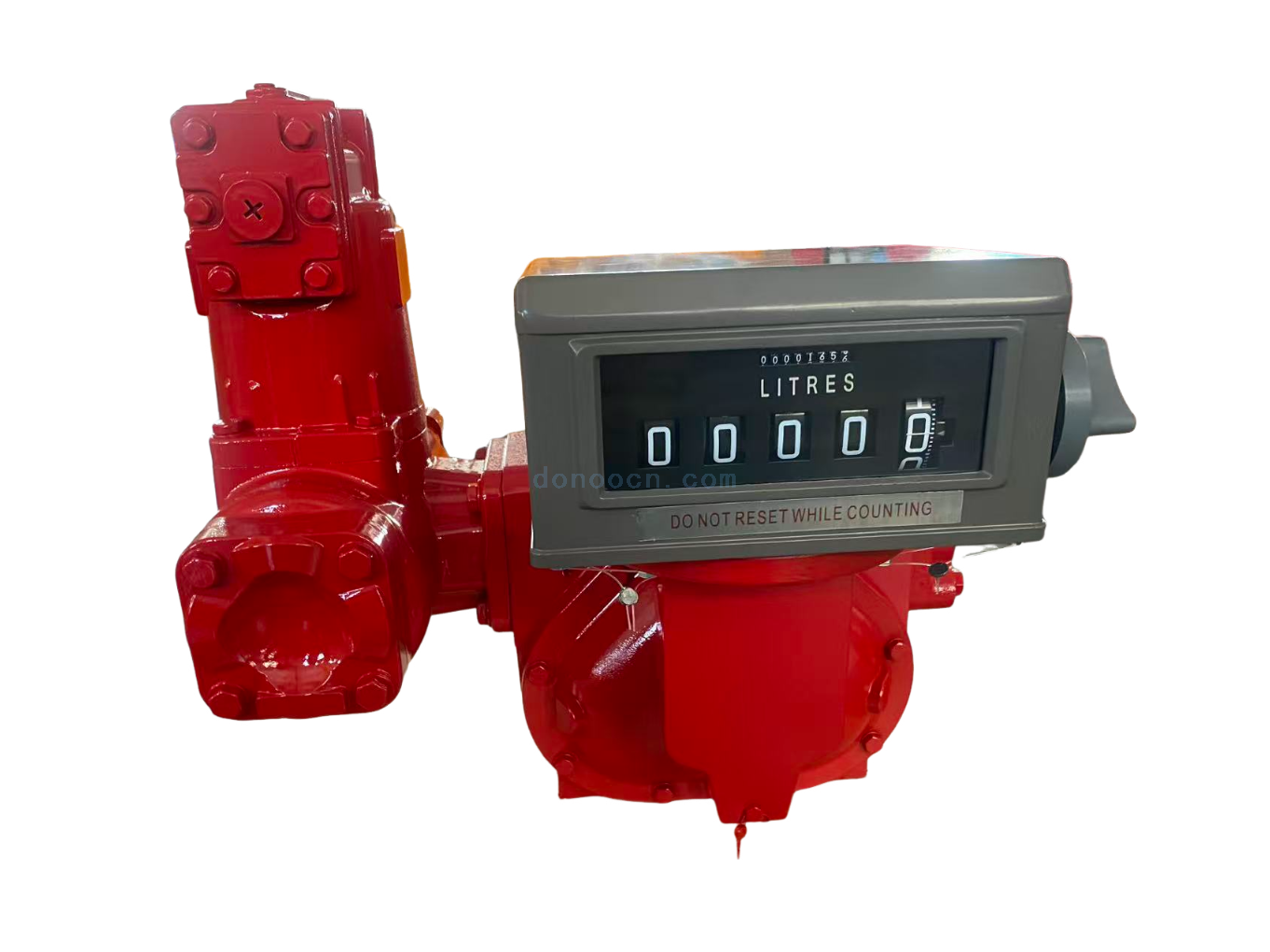

FLM SERIES FLOW METER

The FLM series rotary flowmeter is a high-precision flow measurement instrument employing volumetric rotary metering technology. Its core metering mechanism consists of pump body flow channels, two displacement shafts, blocking shafts and gears, and can be integrated with components such as mechanical/electronic/preset counters, adjustor, filters, separators, preset valves, and solenoid valves to form a comprehensive measurement solution. Technical parameters and selection criteria for each configuration model are detailed in Appendix A, "FLM Series Product Configuration Selection Table".
This flowmeter adopts high-quality bearings and journal materials. There is no direct contact between the rotors and the cavity walls, ensuring long service life of the core moving components. Thanks to its unique directional flow design, the flowmeter generates minimal pressure loss overall, delivering superior performance compared with other types of flowmeters.
