The coupler is designed for rapid bottom loading of fuel and enables a dry, drip-free disconnection from the adaptor, in compliance with API RP1004 standards. It operates in a semi-automatic mode, allowing for quick coupling and separation.

  • XBLC02M

  • DONOO

Availability:
Quantity:
Inquire Add to Basket
bottom loading API Coupler
Product Description

Body Material ： 304 Stainless Steel、316 Stainless Steel

Nominal Diameter ： DN100-4"

Work pressure ： 0.6MPa

Sealing materials: Fluororubber, EPDM,Perfluoroelastomer

Specifications: API standard interface; TTMA flange interface

Flange bolt circle diameter: 149 mm

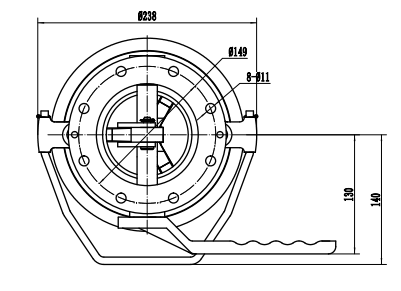

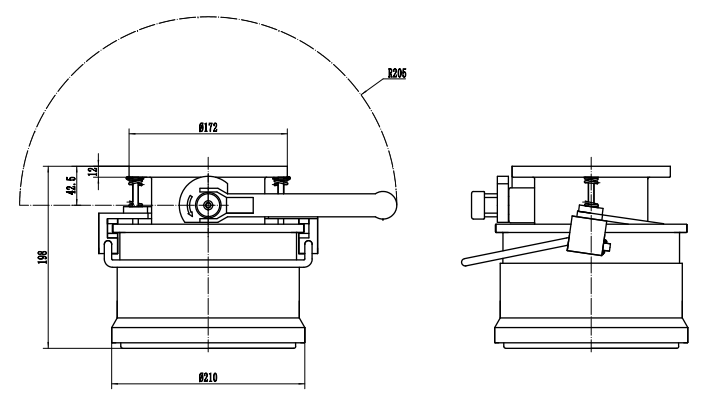

XBLC02M:

62fdc60cfe417888d14bcc21530f2ae5

cf95fbf8031a10e870db43157394665d

Product Description

Related Products

4"Petroleum Tanker API adaptor valve C806C-100
4"Petroleum Tanker API adaptor valve C806C-100
